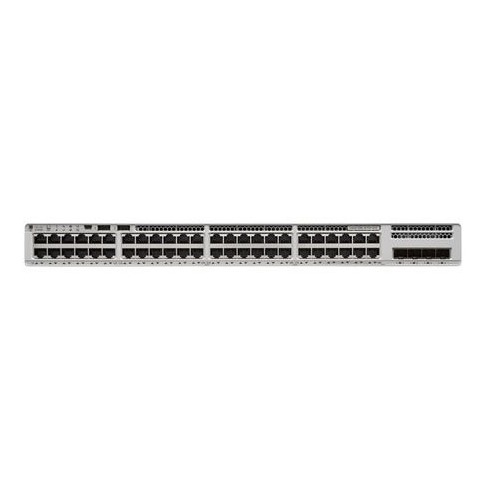

Cisco Catalyst 9200L 48-Ports Network Essential Switch (C9200L-48P-4G-E)
Cisco Catalyst 9200L 48-Ports Network Essential Switch (C9200L-48P-4G-E)

Cisco Catalyst 9200L 48-Ports Network Essential Switch (C9200L-48P-4G-E)

Model: C9200L-48P-4G-E

Key Information
  • Type: Network Essential Switch

No Longer Available

100% Genuine Product
Secure Payment
Extend intent-based networking everywhereCisco® Catalyst® 9200 Series switches extend the power of intent-based networking and Catalyst 9000 hardware and software innovation to a broader set of deployments. With its family pedigree, Catalyst 9200 Series switches offer simplicity without compromise – it is secure, always on and IT simplified.

  • As foundational building blocks for the Cisco Digital Network Architecture, Catalyst 9200 Series switches help customers simplify complexity, optimize IT, and reduce operational costs by leveraging intelligence, automation and human expertise that no other vendor can deliver regardless of where you are in the intent-based networking journey.

  • Catalyst 9200 Series switches provide security features that protect the integrity of the hardware as well as the software and all data that flows through the switch. It provides resiliency that keeps your business up and running seamlessly. Combine that with open APIs of Cisco IOS XE and programmability of the UADP ASIC technology, Catalyst 9200 Series switches give you what you need now with investment protection on future innovations.

  • With full PoE+ capability, power and fan redundancy, stacking bandwidth up to 160 Gbps, modular uplinks, Layer 3 feature support, and cold patching, Catalyst 9200 Series switches are the industry’s unparalleled solution with differentiated resiliency and progressive architecture for cost-effective branch-office access.
Main
Brand Cisco
General
Type Network Essential Switch
Features
Features

Device Type: Switch - 48 ports - L3 - stackable

Enclosure Type: Rack-mountable

Subtype: Gigabit Ethernet

Ports: 48 x 10/100/1000 (PoE+) + 4 x Gigabit SFP (uplink)

Power Over Ethernet (PoE): PoE+

PoE Budget: 740 W

PerformanceStacking bandwidt: 80 Gbps ¦ Switching capacity: 56 Gbps ¦ Forwarding rate: 83.33 Mpps

CapacityVirtual networks: 1 ¦ IPv4 routes: 11000 ¦ IPv4 routing table entries: 3000 ¦ IPv6 routing table entries: 1500 ¦ Multicast scale: 1000 ¦ ACL scale entries: 1500 ¦ FNF entries: 16000 ¦ VLANs supported: 1024 ¦ Switched virtual interfaces (SVIs): 512 ¦ QoS hardware queues per port: 8

MAC Address Table Size: 16000 entries

Jumbo Frame Support: 9198 bytes

Routing Protocol:OSPF, RIP-1, RIP-2, EIGRP, VRRP, PIM-SM, EIGRP for IPv6, PIM-SSM, policy-based routing (PBR), RIPng, MSTPRemote Management Protocol: SNMP 1, RMON 1, RMON 2, SNMP 3, SNMP 2c, CLI, NETCONF, RESTCONF

FeaturesQuality of Service : (QoS), Cisco StackWise Technology, Rapid Per-VLAN Spanning Tree Plus (PVRST+), Shaped Round Robin (SRR), PXE support, Remote Switch Port Analyzer (RSPAN), NetFlow, Energy Efficient Ethernet, Management Information Base (MIB), Class of Service (CoS), Flexible NetFlow (FNF), 802.1x authentication, DiffServ Code Point (DSCP) support, MACsec support, 6MB packet buffer, Control plane protection (CoPP), Switched Port Analyzer (SPAN), Embedded Event Manager (EEM), Protocol Independent Multicast (PIM), First Hop Security (FHS), PVLAN support, Committed Information Rate (CIR)

Compliant Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3at

RAM: 2 GB

Flash Memory: 4 GB

Dimensions & Weight

Width17.5 in

Depth1.7 in

Height11.3 in

Weight9.59 lbs
