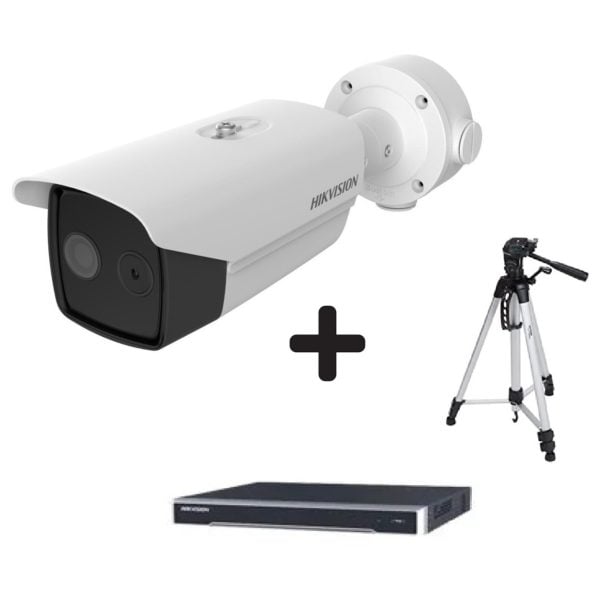

Hikvision Temperature Screening Thermographic Bullet Camera + Tripod + 4TB HDD (DS-2TD2617B-3/PA)
Hikvision Temperature Screening Thermographic Bullet Camera + Tripod + 4TB HDD (DS-2TD2617B-3/PA)
Hikvision Temperature Screening Thermographic Bullet Camera + Tripod + 4TB HDD (DS-2TD2617B-3/PA)
Hikvision Temperature Screening Thermographic Bullet Camera + Tripod + 4TB HDD (DS-2TD2617B-3/PA)

Hikvision Temperature Screening Thermographic Bullet Camera + Tripod + 4TB HDD (DS-2TD2617B-3/PA)

Model: DS-2TD2617B-6/PA

Key Information
  • Effective Megapixel: 160×120

No Longer Available

100% Genuine Product
Secure Payment
Hikvision DS-2TD2617B-6/PA Temperature Screening Thermographic Bullet Camera

  • High sensitivity thermal module with 160 x 120 resolution
  • NETD is less than 40 mk (@25° C, F#=1.1)
  • Leading thermal image processing technology: Adaptive AGC, DDE, 3D DNR
  • Support temperature screening
  • Support audio alarm
  • With AI face detection
  • Large number of people can be checked at one time
  • Corporate Area Coverage
  • Quick Deployment
  • Focusing  distance 1.5 M to 5M
  • Lens 6mm

Target customers

  • Schools, Collages& University
  • Hospitality
  • Enterprise customer
  • Small/medium business customer,
  • Government sectors
  • Malls
Main
Brand Hikvision
General
Type Thermal Camera
Included Lenses Thermal Lens 6MM
Features

High sensitivity thermal module with 160 x 120 resolution.

NETD is less than 40 mk (@25° C, F#=1.1)

Leading thermal image processing technology: Adaptive AGC, DDE, 3D DNR

Support temperature screening

Support audio alarm

With AI face detection

Large number of people can be checked at one time

Corporate Area Coverage

Quick Deployment

Focusing distance 1.5 M to 5M

Lens 6mm

Sensor
Megapixel 4MP
Effective Megapixel 160×120
Max resolution 2688×1520, 4MP
Other Resolutions Thermal: 25fps(1280 × 720, 704 × 576, 640 × 480, 352 × 288, 320 × 240);Optical: 50Hz: 25fps (2688 × 1520), 25fps (1920 × 1080), 25fps (1280 × 720);Optical: 60Hz: 30fps (2688 × 1520), 30fps (1920 × 1080), 30fps (1280 × 720)
Sensor photo detectors VOx Uncooled Focal Plane Arrays
Sensor type 1/2.7" Progressive Scan CMOS
Custom white balance Auto/Manual/ATW (Auto-tracking White Balance)/Indoor/Outdoor/Daylight Lamp/Sodium Lamp
Physical
Dimensions 358.3 mm × 113.5 mm × 115.2 mm
Other Features
Other Features

Thermal

Image Sensor - VOx Uncooled Focal Plane Arrays

Resolution - 160×120

Pixel Interval - 17μm

Response Waveband - 8μm to 14μm

NETD - Less than 40 mK (@25°C,F#=1.1)

Focal Length - 6.2mm

IFOV - 2.74 mrad

Aperture - F1.1

Field Of View - 25° × 18.7° (H × V)

Min. Focusing Distance - 0.6 m

Other

Optical

Image Sensor - 1/2.7" Progressive Scan CMOS

Resolution - 2688×1520, 4MP

Min. Illumination - Color: 0.0089 Lux @ (F1.6, AGC ON), B/W: 0.0018 Lux @ (F1.6, AGC ON)

Field Of View - 39.42° × 22.14° (H × V)

Focal Length - 8mm

Shutter Speed - 1s to 1/100,000s

White Balance - Auto/Manual/ATW (Auto-tracking White Balance)/Indoor/Outdoor/Daylight Lamp/Sodium Lamp

Day & Night Mode

IR cut filter with auto switch - WDR 120 dB

Weight
Weight 1.76 KILOGRAM
